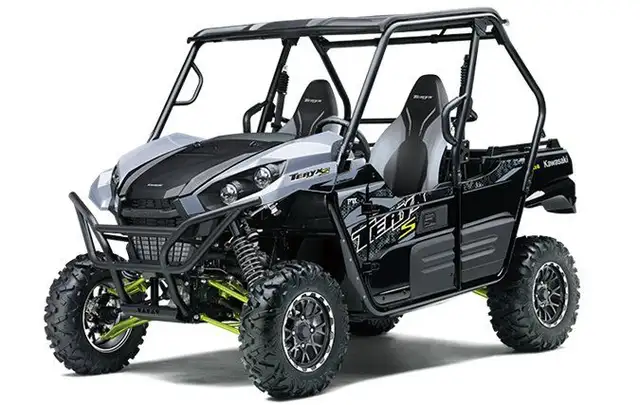

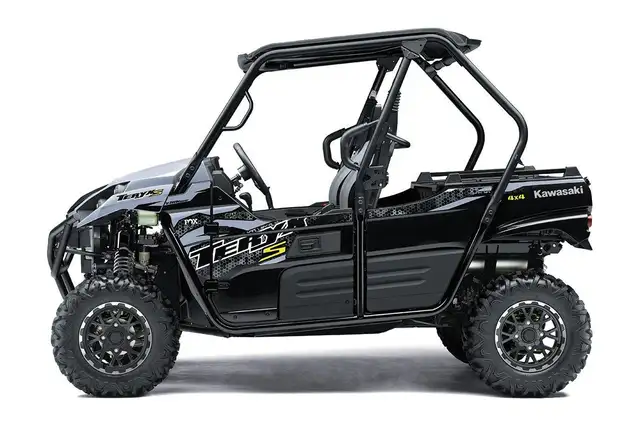

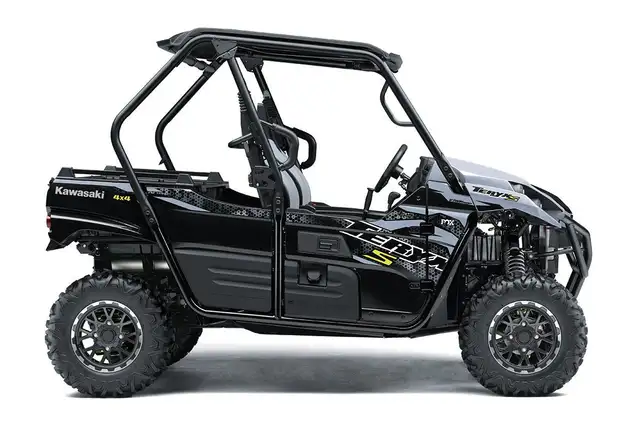

2024 Kawasaki TERYX S LE

Designed for adventure, the two-passenger Teryx side by side has the edge when it comes to power and handling. Premium suspension and a high-capacity cargo bed that holds up to 272 kg (600 lb) of gear mean youre ready to tackle a day trip or a weekend excursion. FEATURING

• 783cc V-TWIN ENGINE
• SPEED-SENSITIVE ELECTRIC POWER STEERING (EPS)
• FOX LSC PIGGYBACK SHOCKS
• KAWASAKI STRONG 3-YEAR LIMITED WARRANTY

ADDITIONAL VEHICLE FEATURES

• Long-travel suspension (10.7 inches front / 10.0 inches rear)
• Increased tread width (55 inches)
• A-arm shape for increased A-arm ground clearance
• Maxxis Bighorn tires
• Double-X steel tube frame
• Large sealed storage space
• Tilting cargo bed
• Four LED headlights
• Sun Top
• 14-inch aluminum wheels

Technology
ERGO-FIT
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style.
ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc.) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride.
Adjustable parts and their range of adjustability vary by model.

Power

• Engine: 783cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder 90° V-twin
• Ignition: Battery & coil (transistorised ignition)
• Starting: Electric
• Final Drive: 2WD/4WD, shaft
• Fuel System: Fuel injection: ø36 mm x 2
• Lubrication: Forced lubrication, wet sump
• Transmission: Dual range CVT with centrifugal clutch and reverse
• Bore X Stroke: 85.0 x 69.0 mm
• Compression Ratio: 10.7:1

Capability

• Frame: Double-X reinforcement type, tubular carbon steel
• Steering: Rack and pinion with Electric Power Steering
• Rear Tires: MAXXIS Bighorn 2.0 27 x 11R14 6PR
• Front Tires: MAXXIS Bighorn 2.0 27 x 9R14 6PR
• Rear Brakes: Enclosed wet multi-plate
• Front Brakes: Dual ø200 mm discs with two-piston calipers
• Rake / Trail: 6.8° / 38 mm
• Parking Brake: Enclosed wet multi-plate
• Steering Angle ( L/ R): 37° (IN) / 32° (OUT), 37° (IN) / 32° (OUT)
• Rear Suspension / Wheel Travel: Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 254 mm (10.0 in)
• Front Suspension / Wheel Travel: Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 272 mm (10.7 in)

Details

• Lighting: 4x LED headlights
• Wheelbase: 2,240 mm (88.2 in)
• Curb Mass : 724 kg (1,596 lb)
• Seat Height: 870 mm (34.3 in)
• Tread ( F/ R): 1,400 mm (55.1 in) / 1,330 mm (52.4 in)
• Fuel Capacity: 30 litres
• Road Clearance: 285/310 mm (standard/max preload) (11.2/12.2 in (standard/max preload))
• Towing Capacity: 590 kg (1,300 lb)
• Seating Capacity: 2
• Cargo Bed Capacity: 272 kg (600 lb)
• Vehicle Load Capacity: 499 kg (1,100 lb)
• Dimensions ( L X W X H): 3,000 x 1,590 x 1,995 mm (118.1 x 62.6 x 78.5 in)
• Cargo Bed Dimensions ( Lx Wx H): 700 x 1,100 x 265 (F) / 300 (R) mm (27.6 x 43.3 x 10.4 (F) / 11.8 (R) in)
