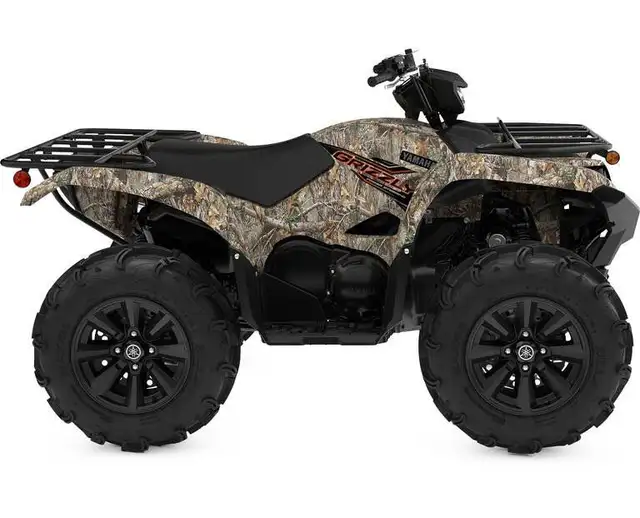

2024 Yamaha GRIZZLY EPS SE Realtree Edge Camouflage

The Special Edition Grizzly further enhances rugged terrain capability and confidence with Maxxis Zilla tires, 14-inch aluminum wheels and high-quality painted bodywork.


Engine

• E N G I N E: Liquid-cooled, SOHC 4-stroke
• I G N I T I O N: TCI
• S T A R T I N G: Electric
• F I N A L D R I V E: On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
• D I S P L A C E M E N T: 686cc
• T R A N S M I S S I O N: Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
• F U E L D E L I V E R Y: Yamaha Fuel Injection (YFI), 44 mm
• B O R E A N D S T R O K E: 102 mm x 84 mm
• C O M P R E S S I O N R A T I O: 10 : 1

Chassis

• T I R E S ( R E A R): Maxxis ZILLA MU01 27 x 10-14
• B R A K E S ( R E A R): Dual hydraulic disc
• T I R E S ( F R O N T): Maxxis ZILLA MU01 27 x 10-14
• B R A K E S ( F R O N T): Dual hydraulic disc
• S U S P E N S I O N ( R E A R): Adjustable independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1in.) of wheel travel
• S U S P E N S I O N( F R O N T): Independent double wishbone; 5-way preload adjustment / 193 mm (7.6in.) of wheel travel

Highlights
Canadian Edition
To celebrate Yamaha Motor Canada’s 50th anniversary, we are offering select models in exclusive Canadian Edition variations. The unique design of these models represent the beautiful, vast and rugged terrain that only Canada has to offer!
CAPABILITY
For the trail rider looking for excitement in every ride, the ideal engine should balance strong big-bore power with immediate, responsive midrange. The Grizzly EPS SE features a potent 686cc engine with power delivery, torque and engine character all optimized for recreational riding.
COMFORT
An independent double wishbone suspension with 7.6 inches of front wheel travel and 9.1 inches at the rear, along with nitrogen-charged shocks offering 5-way adjustable preload, combine to provide excellent rider comfort on even the most challenging trails.
CONFIDENCE
Center-mounted, heavy-duty 2-inch receiver comes standard on Grizzly EPS SE and can tow up to 1,300 pounds.

Promotions
WYY 2025:
Back for 2025
WIN YOUR YAMAHA!
From January 1, 2025 to May 31, 2025
From January 1, 2025 until May 31, 2025, finance your dream Yamaha using Yamaha Financial Services and be entered to win the value of your purchased unit!
WYY_2025
STANDARD
2025-01-01 05:01:00
2025-05-31 23:59:00
End Date: 2025-05-31 23:59:00
MEMBER-mar132024:
Loyalty Program
From March 1, 2024 to March 1, 2099
Currently own a Yamaha Motor product? You may be eligible for a 0.5% reduction on your rate with Yamaha Financial Services when financing a new, previously unregistered Yamaha product. Be sure to ask your dealer about the program and if you qualify.
MEMBER-mar132024
STANDARD
2024-03-01 09:43:00
2099-03-01 09:43:00
End Date: 2099-03-01 09:43:00

Key Features

• Electric starting.
• Big Bore Engine Designed for Aggressive Trail Riding
• High-Performance Ultramatic Transmission
• Exclusive On-Command 4WD
• Class-leading Electric Power Steering
• High-Mounted Air Intake

Critical Data

• W I D T H: 1250 mm (49.2in.)
• H E I G H T: 1270 mm (50in.)
• L E N G T H: 2070 mm (81.5in.)
• W H E E L B A S E: 1250 mm (49.2in.)
• W E T W E I G H T: 342 kg (754 lb)
• S E A T H E I G H T: 917 mm (36.1in.)
• F U E L C A P A C I T Y: 18 L
• T O W I N G C A P A C I T Y: 600 kg (1,322 lb)
• M A X I M U M G R O U N D C L E A R A N C E: 300 mm (11.8in.)

Features And Benefits
KEY DIFFERENCES BETWEEN GRIZZLY 700 EPS & GRIZZLY 700 EPS SE:

• Factory installed WARN winch
• Oversized Aluminum alloy wheels
• 27-inch Maxxis Zilla tires
• Special Edition paint & graphics

ENGINE

• Electric starting.
  • includes auto decompression system for fast, easy starts
• Big Bore Engine Designed for Aggressive Trail Riding
  • For the trail rider looking for excitement in every ride with ideal balance of 700-class big bore power and strong midrange that gives immediate response
  • Rebuilt for 2019, the Grizzly EPS brings even more riding excitement without losing an ounce of comfort thanks to redesigned engine mounts
  • More useable power throughout rev range
• High-Performance Ultramatic Transmission
  • Class-leading transmission combine immediate response with advanced features like all-wheel engine braking
  • Proven to be the most durable ATV transmission on the market
  • Dual range, high- low transmission with reverse
  • High mounted belt cooling ducts help prevent water ingestion
• Exclusive

  2024 Yamaha Grizzly EPS SE

  .

  Engine: 686CC
