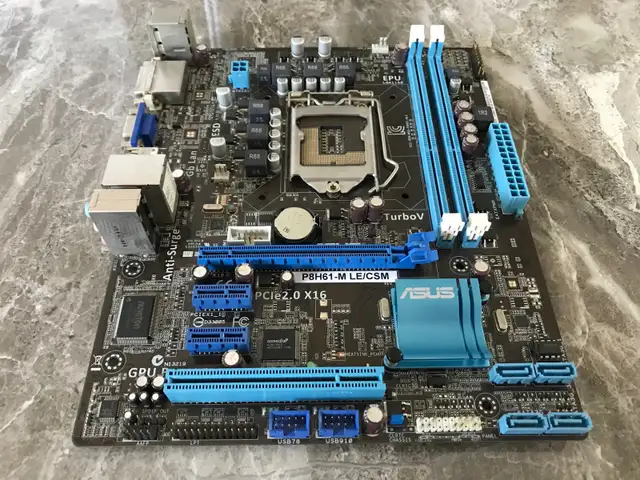

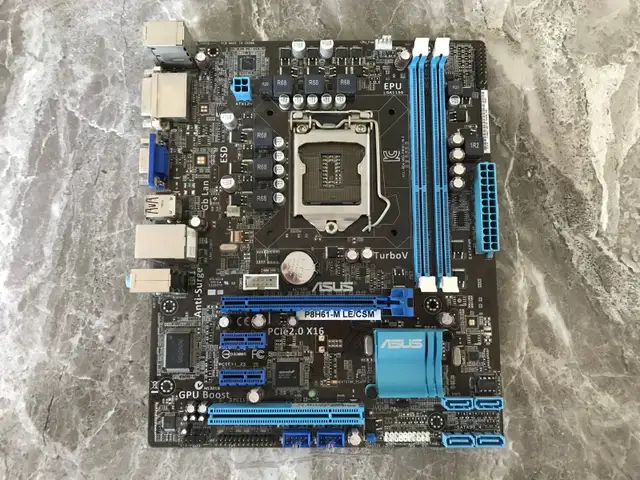

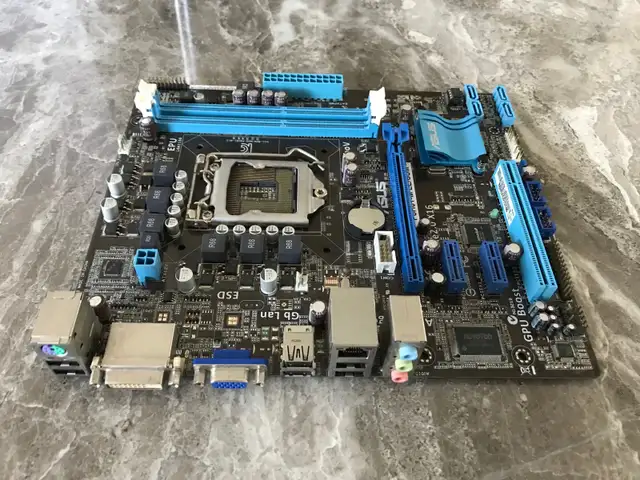

ASUS P8H61-M LE/CSM LGA 1155 Intel H61 Micro ATX Motherboard

ASUS P8H61-M LE/CSM LGA 1155 Intel H61 Micro ATX Motherboard Model Brand ASUS Model P8H61-M LE/CSM Supported CPU CPU Socket Type LGA 1155 CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155) Chipsets Chipset Intel H61 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Memory Number of Memory Slots 2x240pin Memory Standard DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 Maximum Memory Supported 16GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 1 x PCI Express 3.0 x16 PCI Express x1 2 x PCI Express x1 PCI Slots 1 x PCI Slot Storage Devices SATA 3Gb/s 4 x SATA 3Gb/s Onboard Audio Audio Channels 8 Channels Onboard LAN LAN Chipset Realtek 8111F Max LAN Speed 1Gbps Rear Panel Ports Back I/O Ports 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 2.0/1.1 PS/2 1 x PS/2 keyboard/mouse port Video Ports D-Sub + DVI USB 1.1/2.0 6 x USB 2.0 Audio Ports 3 Ports Internal I/O Connectors Onboard USB 4 x USB 2.0 Other Connectors 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel connector(s) 1 x System panel(s) Physical Spec Form Factor Micro ATX Dimensions (W x L) 9.6" x 7.8" Power Pin 24 Pin Features: Features DIGI+ VRM - Digital power Design for the CPU and iGPU GPU Boost - Go to the Limit with iGPU Level Up! Network iControl - Real-time Network Bandwidth Control LucidLogix Virtu Universal MVP AI Suite II - One-stop Access to Innovative ASUS Features Anti-Surge - Full-time Power Guardian-Make System Free From Risk
