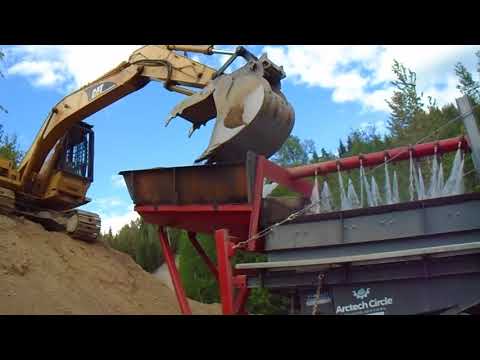

150 Yd oscillating wash plant
150 yd oscillating double screen deck. The top deck has an area of 50 sq ft. and features interchangeable 2 by 1ft polyurathane modules on the top for easy wear, removal and swap-out. The bottom deck has an area of 50 sq ft. and consists of clamp Westflex poly screen which also features easy change out. Can be run with just one deck too.
Dual 7 by 8 ft sluice boxes with boiler boxes and stainless steel hydraulic riffles. Screened water system that roughly uses between 800-1200 GPM and has a valve controlled water bypass.
36 inch by 36ft long Stacker conveyor with belting and gear box, hinged and hung from cable. Dump box wear plates included.
All electric motors, breakers, start ups and waterproof box are included. Can be used for strip mining or stationary mining because of 4 hydrallic lifting legs controlled from a valve bank. Also has bolt on side way skids so it can be easily pulled from the side.
