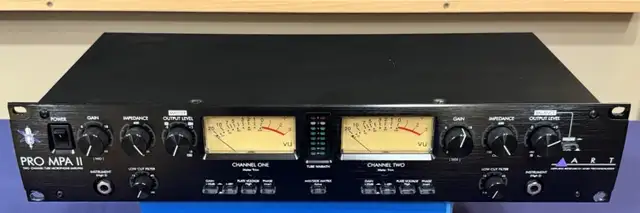

ART Pro Audio Pro MPA-II Two-Channel Studio Mic Preamp

Complete mint as new ART Pro Audio Pro MPA-II Two-Channel Studio Mic Preamp Features • Variable Input Impedance For Flexible Microphone Voicing (150 Ohms To 2400 Ohms) • Selectable Plate Voltage • Large VU Meters • Backlit Function Switches • Discrete Class-A Input Microphone Preamplifier • Low Noise at Lower Gain Settings • Extremely Low Total Harmonic Distortion (THD) • Wide Frequency Response • Additional Front Mounted Instrument Input Jack • Supports Mid/Side Miking Technique • Operates at +4dbm/-10dbv Output • Selectable Stereo/Dual Operation of Output Controls • Automatic Instrument Input Selection Specifications CMRR: > 90dB Dynamic Range: > 110dB ("A" weighted) Equivalent Input Noise: -129dBu (XLR, "A" weighted) Frequency Response: 15Hz to 48kHz (+0, -1dB) @ normal plate voltage 15Hz to 120kHz (+0, -1dB) @ high plate voltage Input Impedance: 150-3000 Ohms adjustable (XLR), > 800K Ohms (Instrument) Maximum Gain: 75dB Maximum Input Level: +19dBu (cannon) Maximum Instrument Input: +17dBu Maximum Output Level: +27dBu (XLR) Output Impedance: < 47 Ohms (XLR) Meter Calibration: 0 VU = +4dBu outupt (+4dB mode) / 0 VU = -10dBV output (-10dB mode) z High Pass Filter: Single pole, 10-200 Hz adjustable Power Requirements: USA - 105 to 125 VAC / 60 Hz Export units configured for country of destination Total Harmonic Distortion: < 0.005% (typical) Dimensions: 8.75"D x 19.0"W x 3.50" H (222mm x 482mm x 88mm) Weight: 10.5 lbs (4.5 kg)
