NAD SYSTEM 3020I AMPLIFIER, 5340 CD, 6150C CASSETTE SERVICED
CONDITION: Serviced, tested, working.
NAD 3020I INTEGRATED STEREO AMPLIFIER
NAD 5340 COMPACT DISK PLAYER
NAD 6150C STEREO CASSETTE DECK
Many speakers available to complete the system
Description:
NAD 3020I INTEGRATED STEREO AMPLIFIER
The NAD 3020i is an improved version of the legendary 1970s NAD 3020 stereo integrated amplifier, featuring upgraded binding posts and refined circuitry. [1, 2, 3]
Core Specifications
• Power Output: 20 watts per channel continuous into 8Ω (stereo)
• Dynamic Power (IHF): 40W into 8Ω, 40W into 4Ω, and 50W into 2Ω
• Frequency Response: 6Hz to 80kHz (+0, -3dB)
• Total Harmonic Distortion (THD): 0.03% (20Hz to 20kHz)
• Signal-to-Noise Ratio: 75dB (MM phono), 100dB (line)
• Damping Factor: 40 (ref. 8Ω, 50Hz)
• Input Sensitivity: 2.4mV (MM phono), 150mV (line)
Features & Physical Dimensions
• Soft Clipping: Built-in switchable circuit to prevent harsh distortion during heavy musical peaks.
• Phono Stage: Discrete 4-transistor MM (Moving Magnet) phono preamplifier.

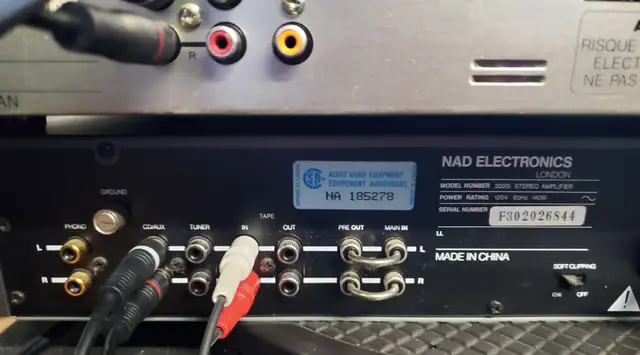

• Connections: Pre-out/Main-in jumpers with removable connectors, plus CD/Aux, Tuner, and Tape inputs/outputs.
• Dimensions (W x H x D): 420 x 80 x 250 mm (approx. 16.5 x 3.1 x 9.8 inches)
• Weight: 5.0 kg (11 lbs)

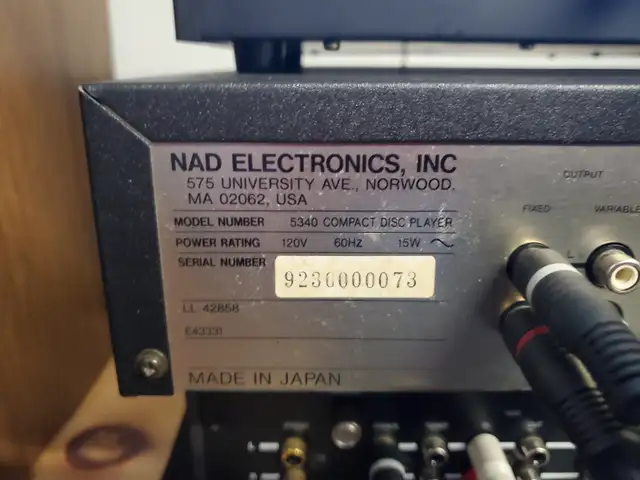

NAD 5340 COMPACT DISK PLAYER
The NAD 5340 is a vintage compact disc (CD) player released around 1988, featuring a 16-bit digital converter and dual PCM56P DACs.
Specifications Overview
• Disc Format: CD
• Digital Converter: 16-bit, 8x oversampling (using dual PCM56P J DACs)
• Digital Connections: Coaxial digital output
• Outputs: Analog line-out and a remote-level-controlled output option
• Release Year: 1988
• Additional Features: Front panel fluorescent display tracking time, tracks, and duration.

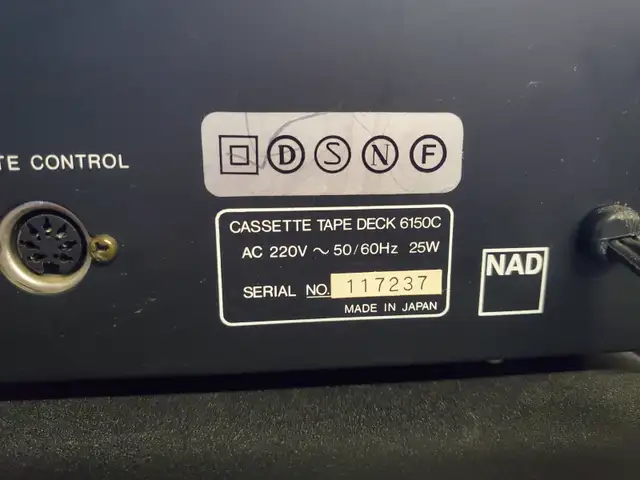

NAD 6150C STEREO CASSETTE DECK
The NAD 6150C is a vintage 2-head single compact cassette deck released around 1981–1983, notable as one of the early units featuring Dolby C noise reduction.
Key Specifications
• Type: 2-head, single compact cassette deck
• Track System: 4-track, 2-channel stereo
• Tape Speed: 4.75 cm/s
• Heads: 1 x record/playback, 1 x erase (Sendust head)
• Motor: DC servo
• Tape Compatibility: Type I (Normal), CrO₂ (Chrome), Metal
• Noise Reduction: Dolby B and C
• Frequency Response: 30Hz to 17,000 Hz (Metal tape)
• Wow and Flutter: 0.04%
• Input: 40 mV (line)
• Output: 0.5 V (line)
• Dimensions (W x H x D): 420 × 110 × 260 mm (approx. 16.5 × 4.3 × 10.2 inches)
• Weight: 7.5 kg (16 lbs 8 oz)

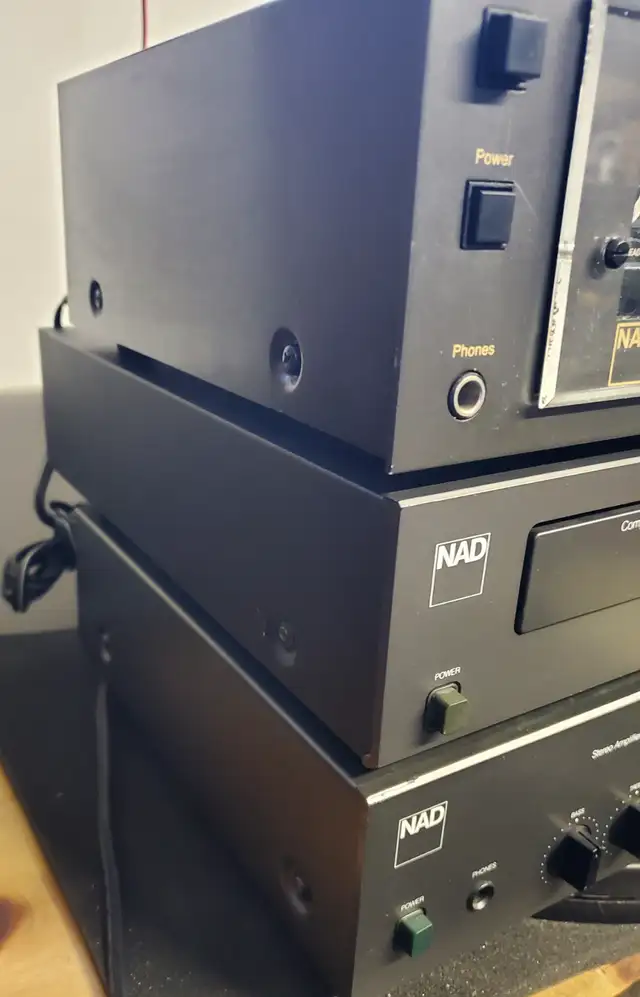

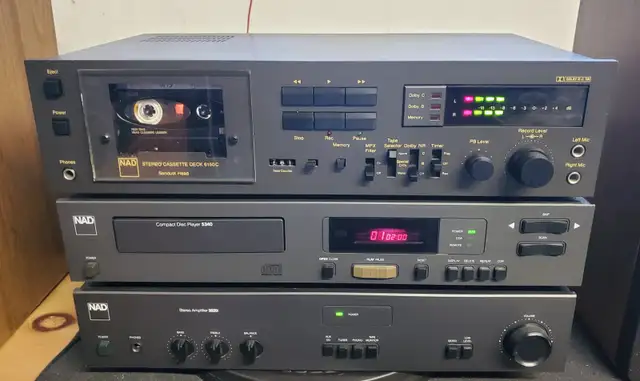

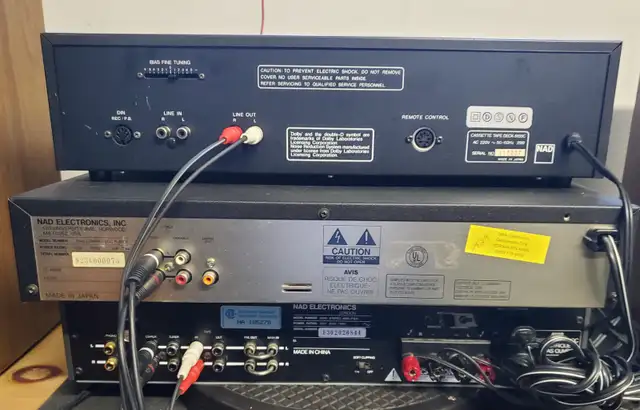

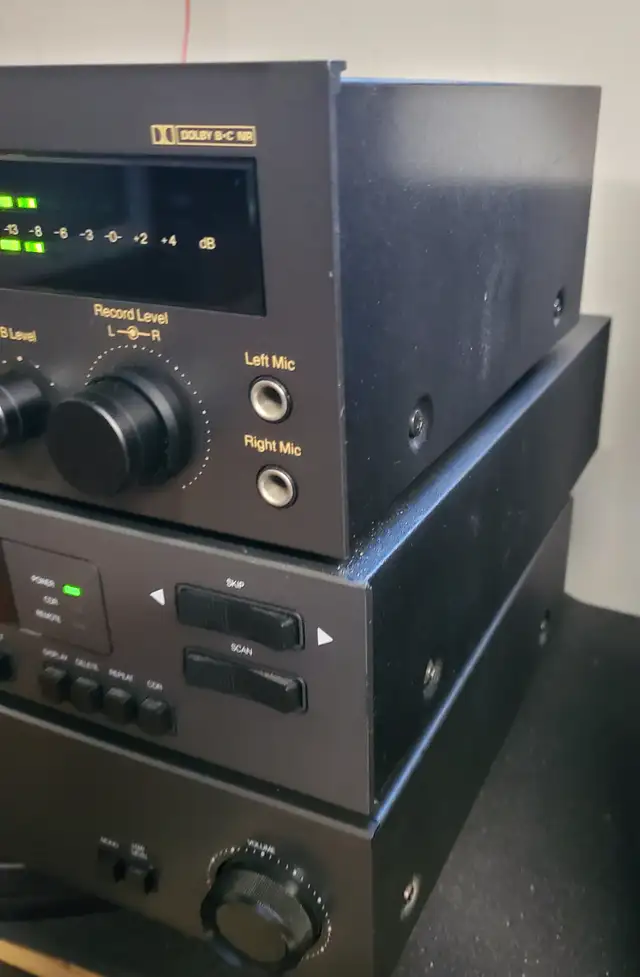

I HAVE INCLUDED THE PICTURES FOR A DETAILED DESCRIPTION. IF YOU HAVE ANY QUESTIONS, PLEASE FEEL FREE TO CONTACT ME
