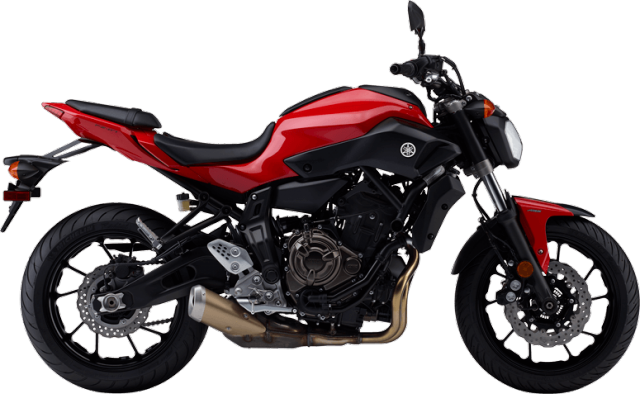

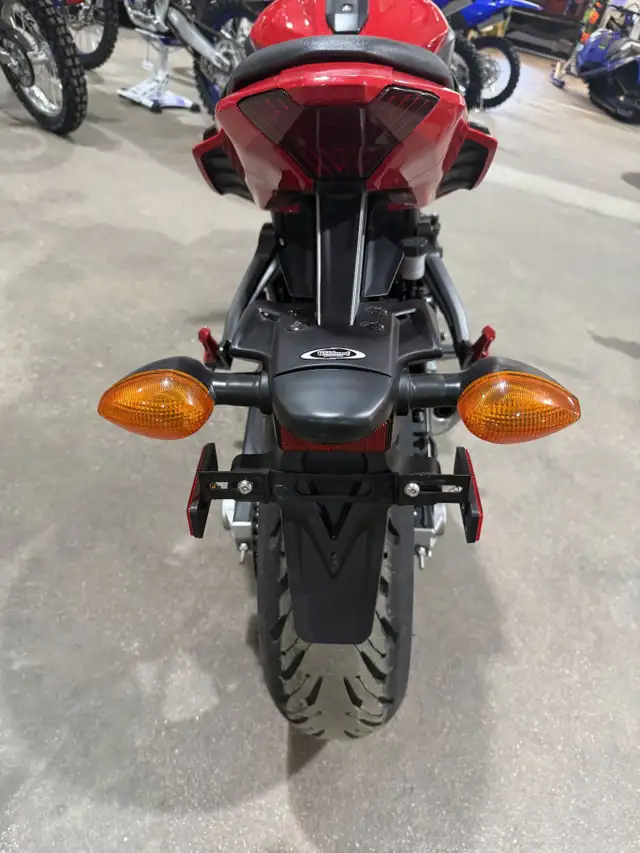

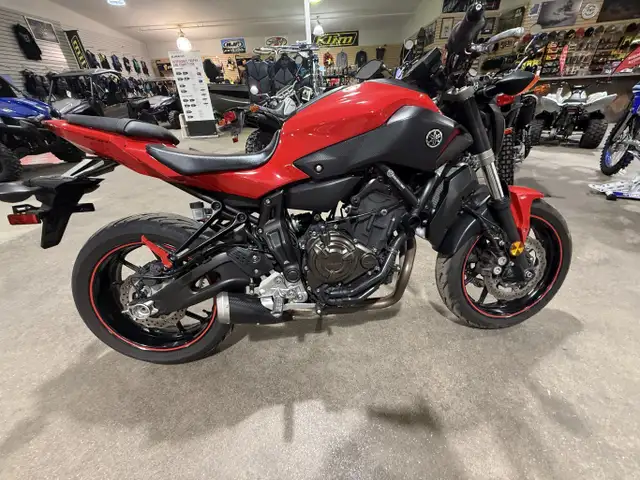

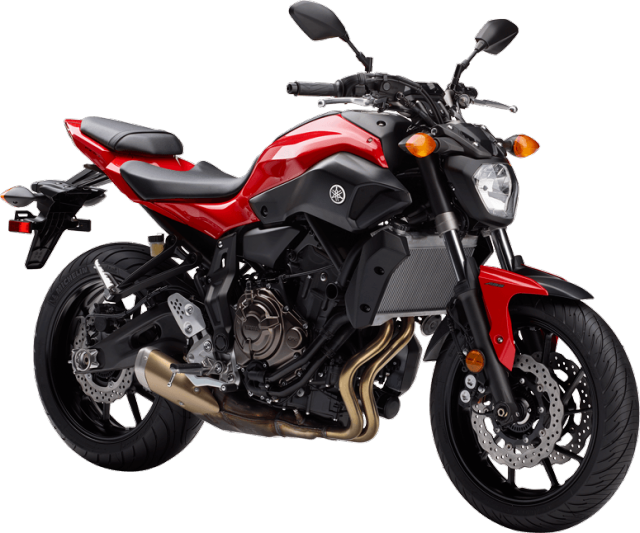

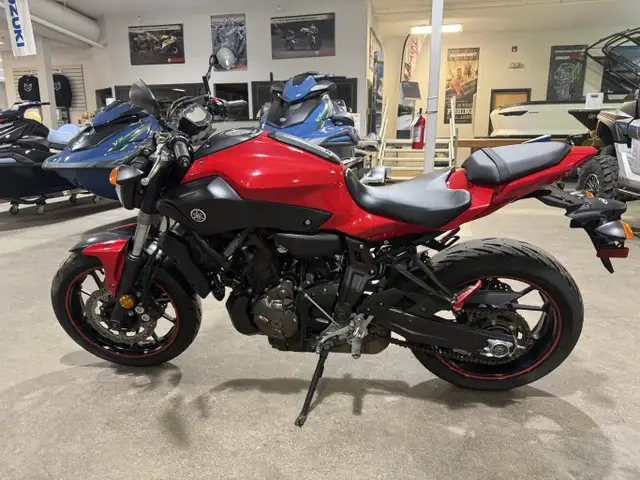

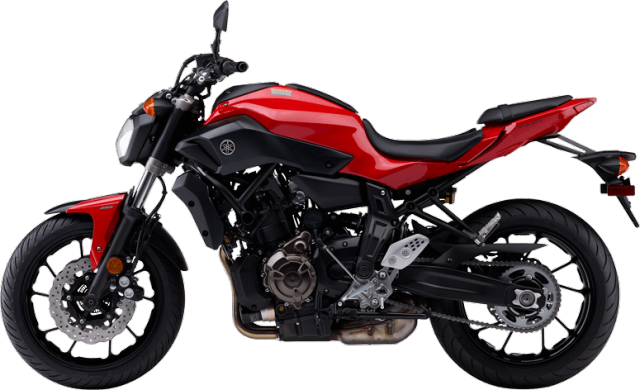

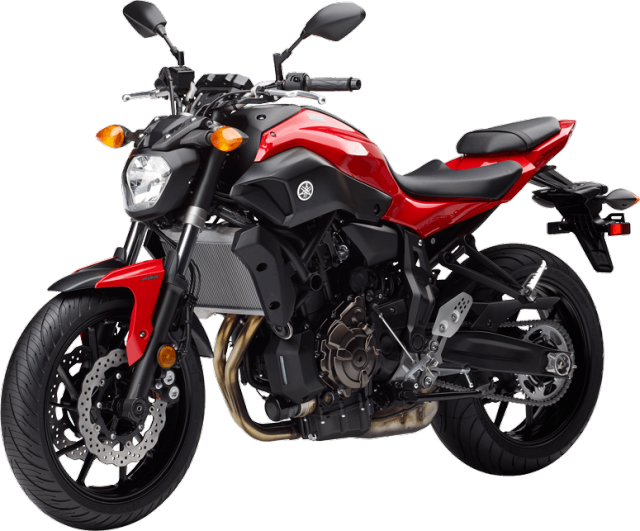

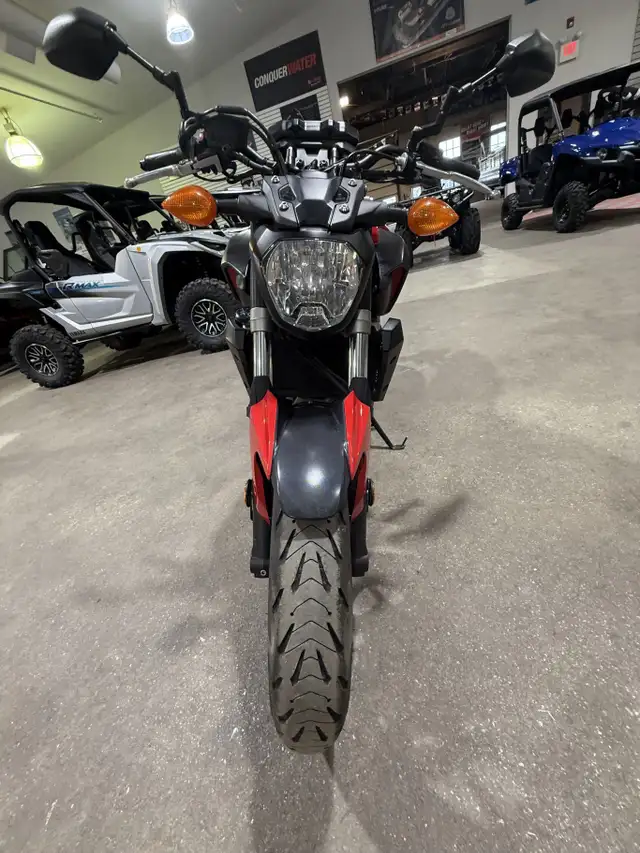

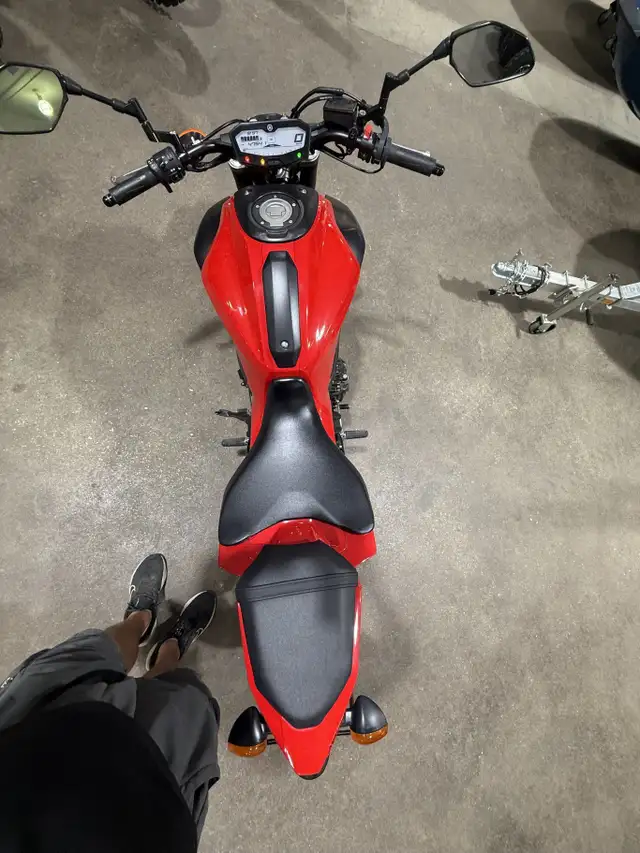

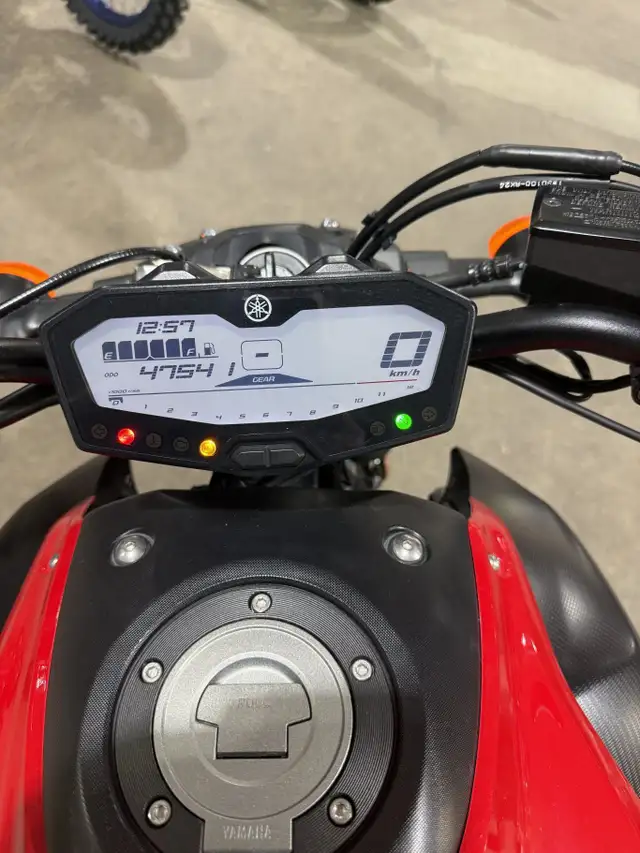

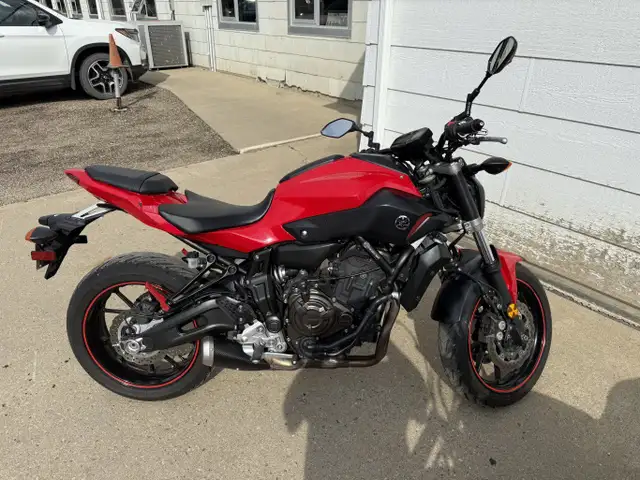

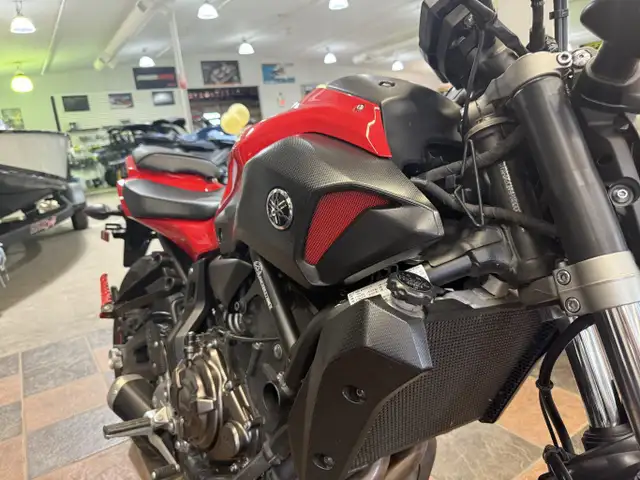

2017 Yamaha FZ-07 ABS

CONQUER ROAD The FZ-07 is a motorcycle that brings fun, affordability and riding enjoyment back to the street. This versatile naked roadster offers deep engine torque and a comfortable riding position in a lightweight, easy to handle sports chassis. Its the perfect machine for both new and experienced riders alike who are looking for outstanding value. POWER Liquid-cooled, 689cc, inline twin has been designed to provide deep, powerful torque in the most frequently used rpm range (3,000 to 6,500 rpm). A single balancer shaft keeps things silky smooth, while the 6-speed transmission with overdrive 6th gear reduces engine rpms at highway speeds. BRAKES The addition of ABS to the dual 282 mm disc, 4 piston caliper up front and 245 mm disc, single piston caliper in the rear gives you piece of mind while braking under pressure or in wet conditions. STYLE From the compact diamond type frame to the single 60/55 watt headlight to the naked roadster bodywork, the FZ-07 is super lightweight and the conventional handlebar design and upright riding position translates into all day riding comfort. 2016 model shown.
KEY IMPROVEMENTS FOR 2017

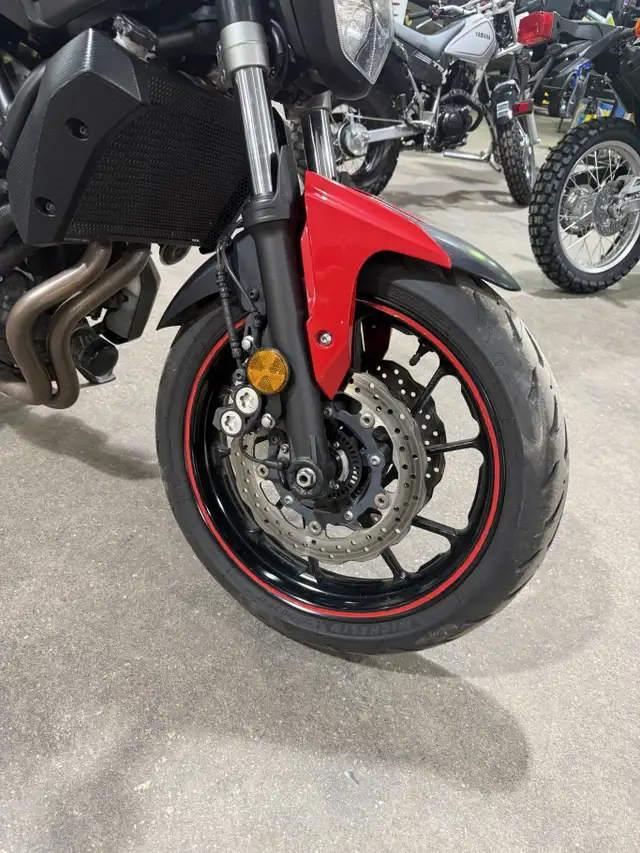

• ABS equipped brakes

ENGINE

• Slim, compact, 689cc, DOHC, 4-valve, liquid-cooled, 20 degree inclined, inline twin cylinder engine. The engine has been tuned to provide plenty of low mid-range torque with very linear throttle response. This engine is not about big specification numbers it produces 75 hp. and 50 ft. lbs. of torque and is designed to maximize riding fun in the real world.

• 4-valve, downdraft style combustion chamber with 11.5:1 compression ratio.
  • excellent torque output... especially in the low to mid rpm range
  • 4-valve design maximizes flow into out of combustion chamber
  • 31.5 mm intake 26.5 mm exhaust valves
  • stainless steel valves feature an Isonite surface treatment carburized tips for excellent durability wear resistance
• Valve adjustment intervals are every 42,000 kms.
• Lightweight hollow camshafts.
  • cam profiles are designed to accentuate low to mid-range torque power in the most commonly used rpm range (3,000 to 6,500 rpm).
  • excellent ride-ability
• CrossPlane Concept 270 degree crankshaft with an uneven firing order.
  • design reduces inertia torque while emphasizing linear torque
  • design has been optimized to achieve strong torque over a broad rpm range
  • CP Concept offers ride ability that allows the rider to control the machine at will.
  • engine design allows a whole new level of rider - machine communication
• Lightweight gear driven coupling force balancer reduces engine vibration for excellent comfort.
• Fracture split connecting rods feature a nut less design.
  • lower end cap of the rod is made from the same piece of material as the upper portion the 2 pieces are split apart using a special fracturing process then machined
  • design aids in establishing true big end roundness greater precision in con rod dimensions for excellent durability despite the high horsepower loads
• Lightweight, forged, aluminum short skirt pistons.
  • design aids in fast engine response
  • reduces mechanical vibration
  • excellent durability
• Direct ceramic composite plated cylinder uses liner less bores.
  • ceramic coating sprayed directly on the aluminum block, eliminating the liner reducing weight
  • excellent heat dissipation for consistent power delivery
  • coating enhances the thin film of oil between the cylinder piston, reducing friction increasing power
• Offset cylinder design.
  • cylinder is offset relative to the crank (toward exhaust side)
  • reduces frictional losses between the pistons cylinder wall during the power stroke for improved power output excellent fuel economy
• One-piece cylinder and upper crankcase assembly.
  • superior engine chassis rigidity (engine is a stressed member)
  • reduces weight
  • engine is a stressed member for increased chassis rigidity
• Closed loop 38 mm Mikuni throttle body fuel injection system.
  • system uses throttle position sensor (TPS) idle speed controller (ISC)
  • 12 hole injectors for optimum fuel atomization
  • system is tuned to provide excellent ride ability linear throttle control.
  • closed loop system uses an oxygen sensor to sniff spent exhaust automatically adjust the fuel / air ratio for reduced emissions
  • fuel injection benefits include choke-free starting, steady idling during warm up, excellent fuel economy reduced emissions
• Compact Electronic Control Unit (ECU).
  • utilizes a powerful 32-bit processor for fast control of the injection ignition processes
  • compact design reduces

    2017 Yamaha FZ-07 ABS

    ...

    Engine: 689 CC
